TV Above a Fireplace in Costa Mesa
TV Mounting Square Costa Mesa covers mounting a TV above a fireplace in Costa Mesa homes — brick hearths in older living rooms, ledger stone in remodels and plastered chimney walls — with the heat above the firebox, the wall behind the TV and the viewing height all checked.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
What the chimney wall is made of
| Fireplace wall | Where it turns up | Fixing |
|---|---|---|
| Brick | Older living rooms | Sleeve anchors into the brick, not the mortar joint |
| Ledger stone or stone veneer | Remodeled rooms | Anchors into solid stone, or screws into framing behind a thin veneer |
| Plaster over the chimney frame | Some 1950s houses | Lag bolts into the framing |
A probe settles which one it is, and the hardware follows the answer.

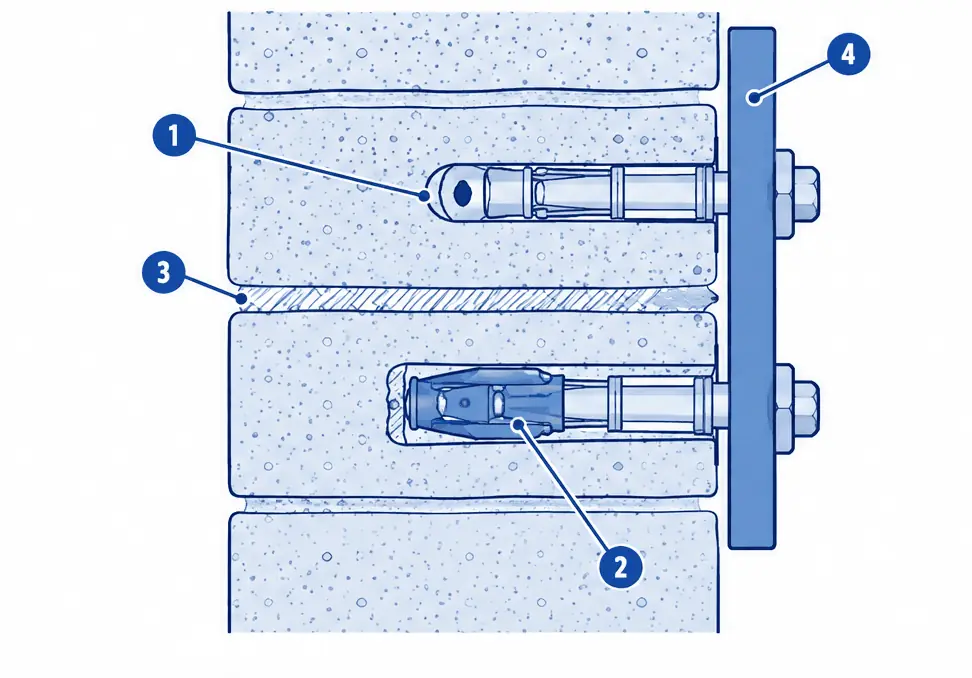

What the numbers show
- Hole in the brick body The anchor hole sits in the middle of a brick, with a joint above and below left untouched.
- Expanded sleeve Tightening the bolt draws a cone into the sleeve, which swells and grips the masonry.
- Mortar joint The joint is softer and can crumble, so no anchor sits in it.
- Wall plate The anchors clamp the plate flat against the face of the wall.
Heat above the opening
A wood fire sends heat and soot up the wall; a gas unit pushes warm air past the top of the opening. The installer reads the clearances in the TV's manual and the fireplace's, then feels how warm the wall gets after a long fire. If it is too hot to hold a hand against, the screen goes higher, or to another wall.
Lowering a high screen with a pull-down arm
Over a mantel the center of the picture often lands well above eye level, which tires the neck. A pull-down mount draws the set toward the seats and parks it flat to the wall afterward. A tilt only shaves a few degrees.
| Mount | Effect | Fits |
|---|---|---|
| Fixed | Screen stays high | A mantel low on the wall |
| Tilting | A few degrees down | A mantel at average height |
| Pull-down | Screen comes to eye level | A tall chimney wall |
What the numbers show
- Wall bracket in the framing The bracket is bolted into framing behind the finish, so the wall carries the weight of the set and the arms.
- Gas-spring arm Two parallel arms with gas springs balance the TV's weight so it moves by hand.
- Parked TV Raised, the TV sits flat to the wall above the mantel, out of the worst heat.
- Lowered TV Pulled down, the set hangs in front of the mantel at the height of the seated viewer.
- Mantel depth The swing has to clear the front edge of the mantel, so its depth is measured.
The cable path
A chimney is masonry, with no cavity for an in-wall kit. A slim raceway painted to match carries the cables down one side of the chimney, and the outlet already near the set is used; a new outlet is an electrician's job.
TV Above a Fireplace — common questions
What does a fireplace TV mount cost in Costa Mesa?
From about $180 for a 32–49 inch set on a plastered chimney wall with the fireplace add. A 50–65 inch TV on stone with the fireplace add and a supplied pull-down mount runs a typical $300–$525 in 2026.
Can a TV go above a working fireplace?
Depends on the heat, checked against both manuals and the temperature of the wall after a fire. If the check fails, the TV goes elsewhere.
Availability & price range
TV Above a Fireplace: check availability and price range
Bookings aren't open yet — answer a few quick questions about the TV and the wall and get a typical Costa Mesa price range right here. Typical Costa Mesa prices for one TV, labor only unless an option says otherwise. This is a market estimate, not a quote.
